Project
Qatar Vision 2030 — Water Security
Qatar

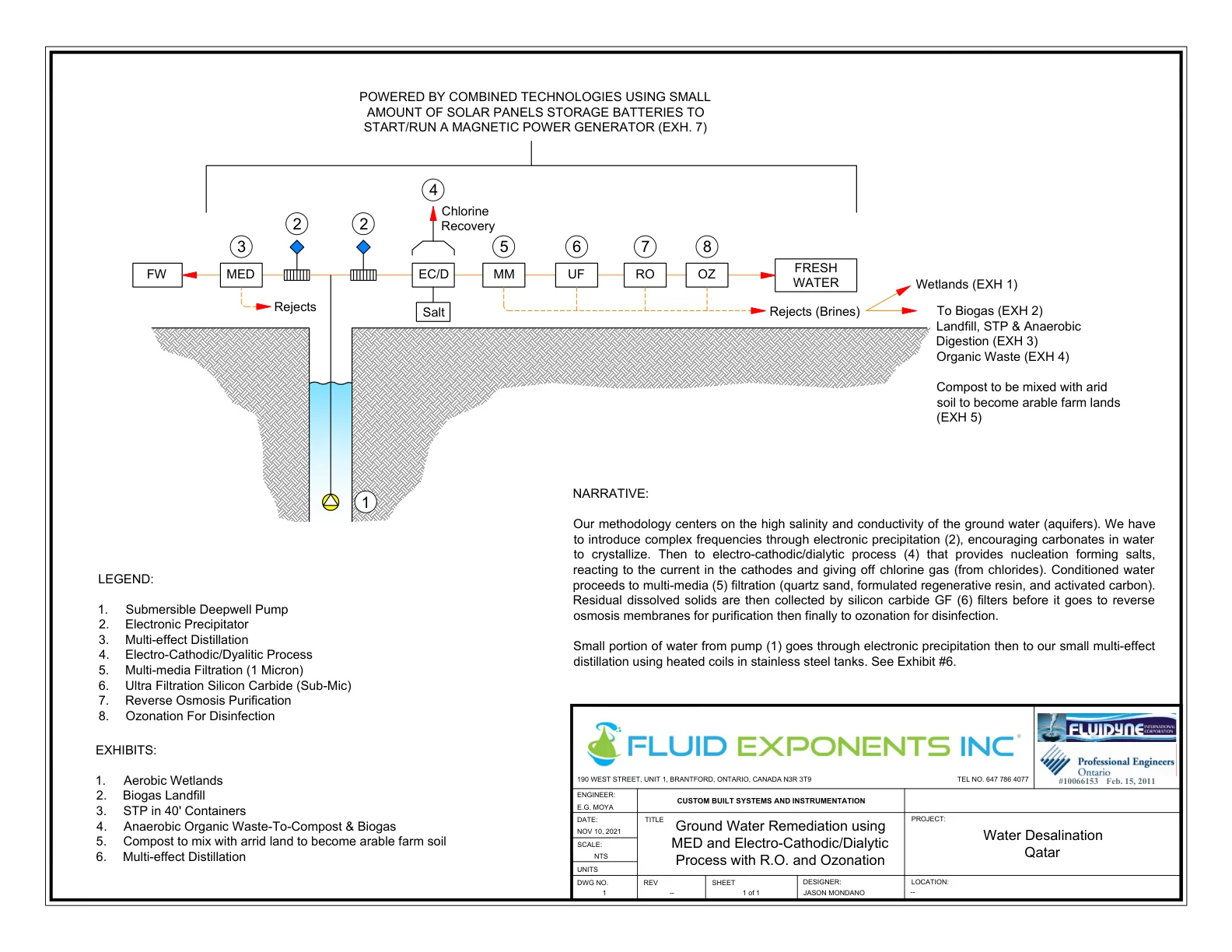

Unsolicited proposal to Qatar Vision 2030 for pilot working units of desalination, water treatment, and power generation technologies for installation at technical schools and universities. The proposal includes: Desalination with Advance pre-treatment and multi-effect distillation (20,000-30,000 gallons/day), Reverse Osmosis system, Rejects (Brines) Treatment with Multi-effect Distillation, and Magnetic Power Generator (100 KW MagGen with 25 KW solar and 2x10 KW wind turbines). Powered by combined technologies using solar panels, storage batteries, and magnetic power generator.
Project Details
| Client | Qatar Vision 2030 (J. Vito Genson) |
| Location | Qatar |
| Desalination Capacity | 20,000-30,000 gallons/day |
| Pre-Treatment | US$345,000 (Electro-Cathodic, Electronic Precipitator, Ozonator, Ultra Filtration) |

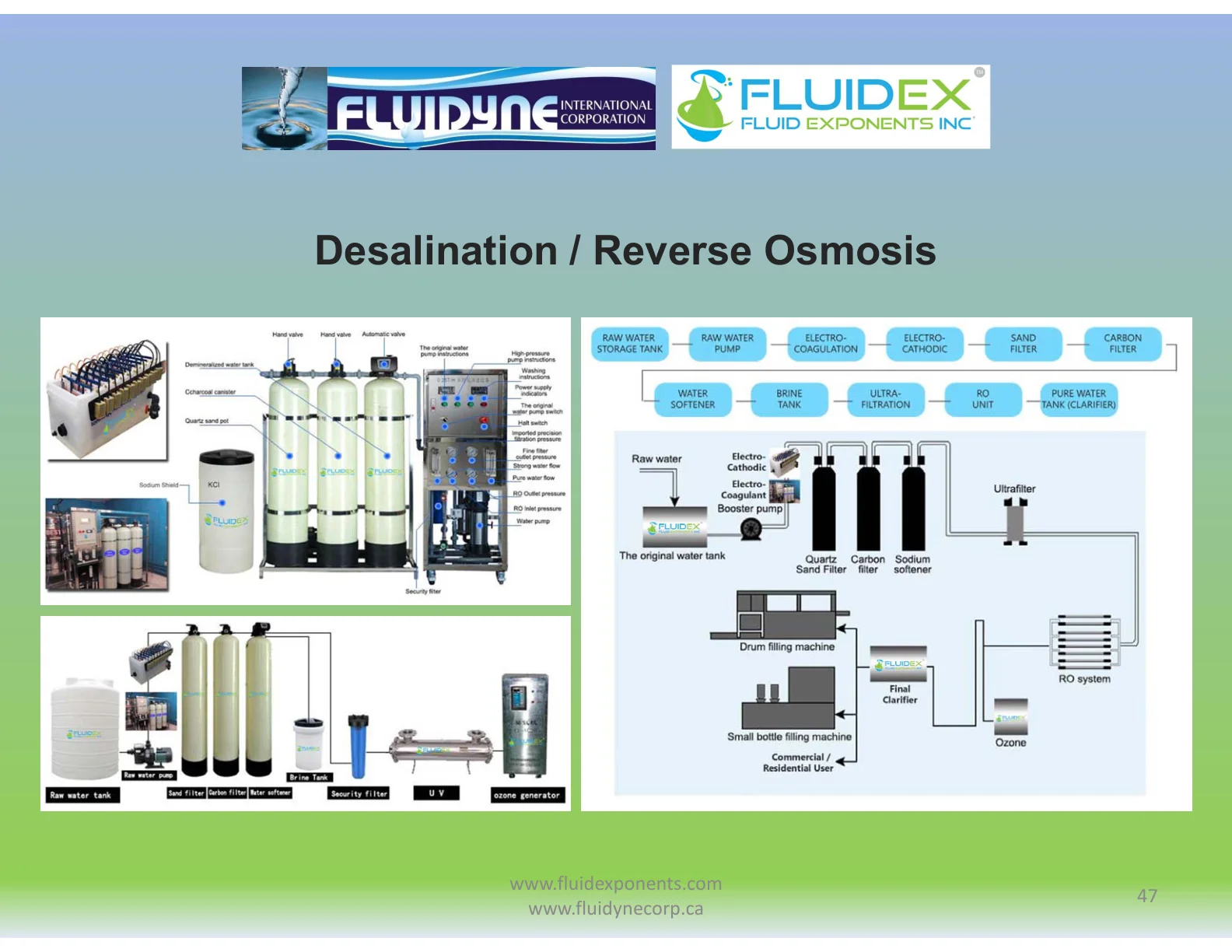

| RO System | US$360,000 |

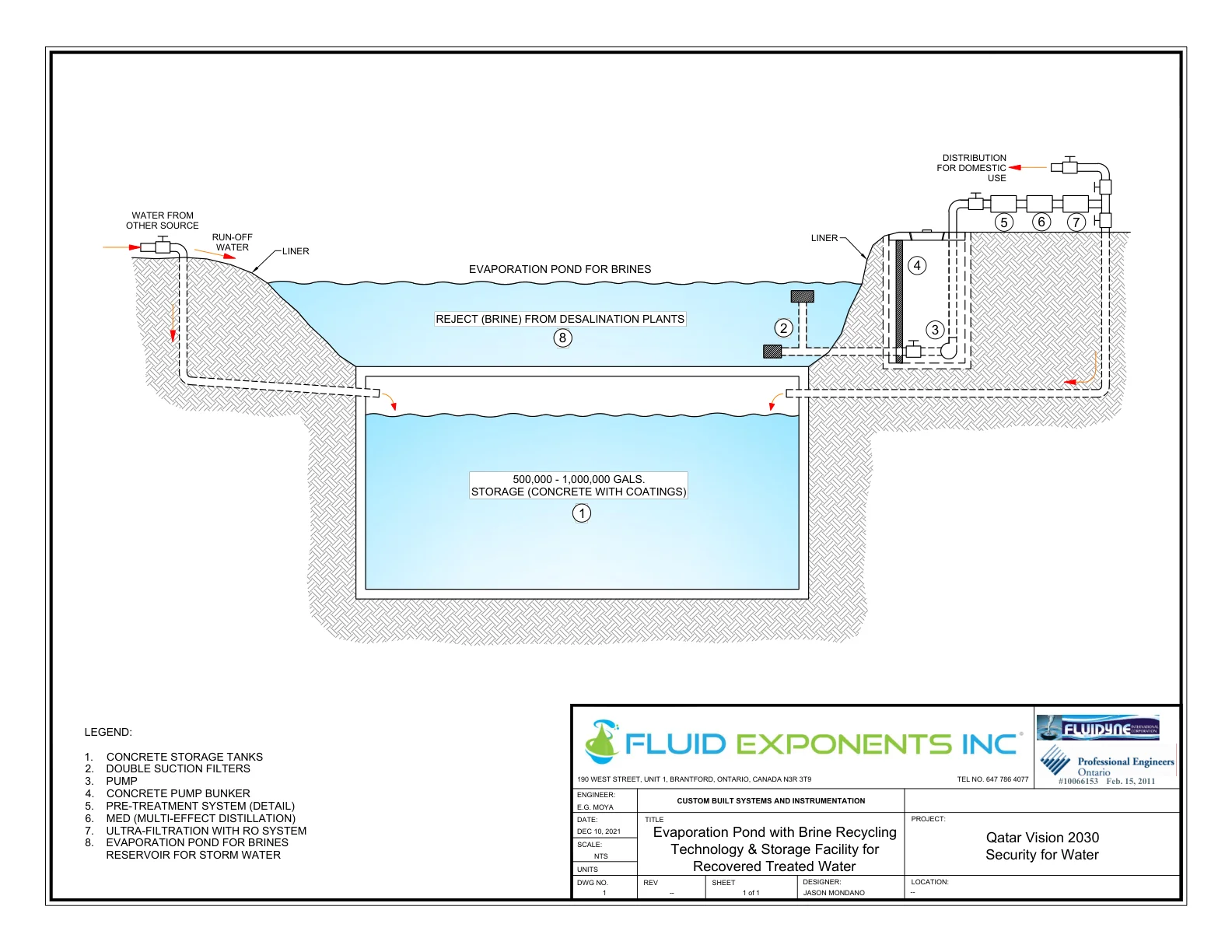

| Brines Treatment | US$240,000 (Multi-effect Distillation) |
| MagGen + Solar/Wind | US$360,000 (100KW MagGen, 25KW Solar, 2x10KW Wind) |
| Date | December 2021 |
